Kappler Frontline® 500 FR / Chemical Protection Suit #F5H582 91

F5H582 91

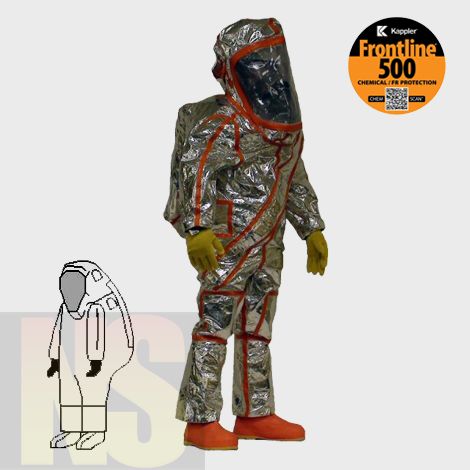

Kappler Frontline® 500 FR / Chemical Protection Suit
#F5H80 91

Get triple assurance with a single suit certified to NFPA 1991. Frontline® 500 offers three-way protection – broad chemical holdout, plus flame resistance and radiant heat protection for the additional hazards encountered in a chemical flash-fire. NFPA certification now includes base plus Optional Flash Fire and Liquified Gas requirements.

Kappler's single-suit design means goodbye to the days of a cumbersome two-suit NFPA 1991 configuration. As with all Kappler apparel, this is a multi-use, single exposure garment. Offering comparable protection to Kappler’s Zytron® 500 chemical apparel, Frontline 500 provides excellent holdout for the ASTM F1001 battery and beyond.

For optimal radiant heat protection, Kappler's commitment to user survivability led us to use the more demanding Pyroman Thermal Manikin testing in addition to the NFPA 1991 Chemical Flash Fire Option. Pyroman results for Frontline 500 indicated 0% body burn – a huge confidence factor when facing a chemical flash situation.

Chemical, flash, radiant – three hazards, one suit. With Frontline 500, Kappler's got your back – and your front.

Front Entry

Expanded Back for SCBA (SCBA not included)

Glove System:
Butyl Outer Gloves w/ Ansell Barrier® Liner and Kevlar Outerglove.

Large 40 mil. PVC lens w/5 Mil. Teflon Over-lay on lens


Case Quantity:
1 Suit per Case

Seam Style:
 Heat Sealed and Taped Seam Inside and Outside Construction - Z5HTN C2
*Heat Sealed and Taped Seam Garments feature a double storm flap with hook and loop closure over the front zipper.

Silver w/ Orange Taped Seams

Kappler Frontline® 500 Specifications Sheet


  • Hazmat response
  • Chemical handling with potential for chemical flash-fire
    Single garment eliminates need for typical 2-suit NFPA 1991 configuration

Features & Benefits:

  • Combines chemical, flash-fire and radiant heat protection in a single suit
  • Seams are sewn and double heat-sealed/taped for added protection
  • Large expanded-view face shield improves field of vision
  • Unique 2N1™ glove system prevents inner glove inversion when removing hands
